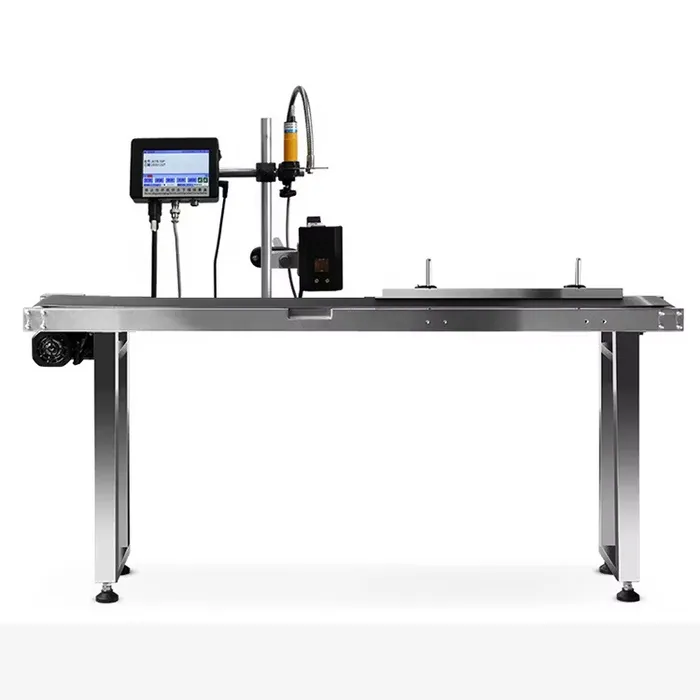

Auto Feeder Conveyor for Printing
Our Auto Feeder Conveyor for Printing is a conveyor system integrated with a Batch Coding Machine for automatic online printing of Batch No., Mfg. Date, Exp. Date, MRP and QR Code on Bottles, Cartons and Pouches. Ensures high-speed, smudge-free coding.
Key Features
- Online High-Speed Coding: Continuous batch coding without stopping the line, up to 150 products per minute
- Universal Printing: Compatible with TIJ, CIJ, Laser, and Thermal Transfer printers for any surface - PET, HDPE, Glass, Carton
- Stable Product Movement: Special belt with adjustable guide rails for jerk-free movement and perfect print position
- Adjustable Height & Speed: Height adjustable stand and variable speed control via VFD drive
- GMP Design: Complete SS body, food-grade belt, and dust-free operation
- Custom Integration: Can be integrated with Bottle Filling Line, Counting Line, and Cartoning Line
Applications
Specifications
- Model: Flat Belt Batch Coding Conveyor Type
- Conveyor Size: 1500mm L x 200mm W (Standard) / Customizable
- Belt Type: PVC / PU Food Grade Belt
- MOC: SS Frame Structure
- Motor: 0.5 HP Geared Motor with AC Drive
- Printing Type: TIJ / CIJ / Laser / TTO Compatible
- Coding Content: Batch No., Mfg., Exp., MRP, Logo, QR, Barcode
Frequently Asked Questions
What is the Auto Feeder Conveyor for Printing used for?
It is used for online, non-contact printing of batch numbers, manufacturing and expiry dates, MRP, and QR codes on bottles, cartons, and pouches while the line is running.
What printing technologies are supported?
The conveyor is compatible with TIJ, CIJ, Laser, and Thermal Transfer printers for various packaging surfaces and materials.
Can it be integrated with other production lines?
Yes, it can be integrated with bottle filling lines, counting lines, and cartoning lines for seamless production flow.
Is it suitable for GMP applications?
Yes, the system is designed with a complete SS frame, food-grade belt, and dust-free operation to support hygienic manufacturing environments.
